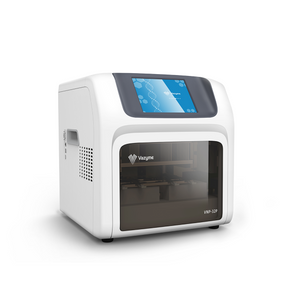

Real-Time Quantitative Thermal Cycler

The FMR3 instrument consists of control system, power system, electro-optic system, module component, heated-lid component, shell component and software(Version V1.0)
Availability:
Quantity:
  • FMR3
  • vazyme

Product Introduction

The FMR3 instrument consists of control system, power system, electro-optic system, module component, heated-lid component, shell component and software(Version V1.0) This instrument is intended to use with proper reagents together to carry quantitative/qualitative detection and melt curve analysis for nucleic acid derived from human body based on fluorescent polymerase chain reaction (PCR), such as pathogen and human nucleic acid, etc.


Operation Principles

Specifications of optical system:

Light source: halogen lamp.

Fluorescence detection range: 380 to 780nm.

Excitation wavelength: up to 5 channels (380~780nm).

Emission wavelength: up to 5 channels (380~780nm).

360桌面截图20210906145450

Key Advantages

• Reliable: Temperature control system range from 4 "C to 100 "C

• Efficient: Detection system has 6 zones independent tenperature control

• Rapid data acquistion

• User-fridenly software platform


Experimental Procedure

360桌面截图20210906145810

Product Parameters

Product Name

Real-Time Quantitative Thermal Cycler -FMR3

Sample capacity

96*0.2 mL

Medical supplies

0.2 mL single tube,8*0.2 mL row tube,96-well plates

Processing volume

6 uL-125 uL

Temperature control range

4℃-100℃

Heating rate

3.5℃/S

Cooling rate

3.2℃/S

Temperature control accuracy

±0.1℃

Number of temperature control zones

6 zones independent temperature control

Gradient temperature change range

1℃-32℃

Gradient temperature selection range

30℃-100℃(The temperature is below 28℃)

Excitation light source

Full-wavelength maintenance-free halogen lamp

Excitation light wavelength range

380nm-780nm

Number of excitation light channels

5(Scalable to 6 channels)

Applicable fuel and probe

FAM/SYBR Green I/Eva Green/LC Green/Fluorescein,

VIC/HEX/TET/CY3/Cy3.5/JOE/Yellow555, ROX/Texas Red, Cy5/Cy5.5/LC Red,Tamar

Confidence interval

Can be effectively distinguish between 5000 and 10,000 copies, and the confidence interval is greater than 99.8


Detection Kit

CD302

This product is intended for the detection of 2019-Novel Coronavirus (2019-nCoV). It provides triplex-detections in a single tube, including two independent genes of 2019-nCoV (ORF1 ab gene (Rd RP region) and N gene) and an internal control which targets the human RNAse P (RNP) gene to assess specimen quality.


Product information

Product name

2019-Novel Coronavirus(2019-nCoV)Triplex RT-qPCR Detection Kit

Kit content

Positive control; Negative control; Enzyme mix; Detection buffer

Gene target

ORF1ab gene N gene

Suitable specimen type

upper respiratory specimen

lower respiratory specimen

Number of tests

100 tests

Shelf Life

12 months

Storage conditions

-30℃~-15℃


Ordering Information

Cat.No  Product Name Specification Storage
FMR3 Real-Time Quantitative Thermal Cycler 96 flux /
CD302-02 2019-Novel Coronavirus(2019-nCoV)Triplex RT-qPCR Detection Kit 100 tests -30℃~-15℃ for 12 months

The products on this website may not be sold in all countries or regions. Please contact Vazyme or your local distributor for further information.
